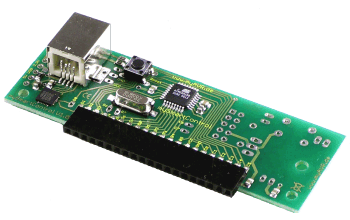

mySmartControl M8, equipped
Product groups >
Systemboards > mySmartControl M8, equipped
available downloads for this product:
mySmartControl is a compact microcontroller-board with a AVR RISC controller from Atmel and a standardized USB interface.
The programming is possible via a pre-installed boot loader or over ISP (if you want to program via isp you need
the ISP Connect Kit).
mySmartControl is equipped with an ATmega8 (8 KB FLASH and 3,6.864 MHz).You dispose with that over 20 digital
inputs and outputs, 8 analogue inputs and a counter, comparator, PWM-outputs, interfaces like UART, SPI, TWI, I²C
and so on. The power supply takes place over USB or a separate connection. In order to perform control tasks the
module uses a 20-pin female header as myAVR standard connection.
mySmartControl is ready to be used as it is. The communication with the PC runs completely transparent over a
virtual COM-Port.
|
If you want to connect the mySmartControl to a laptop we recommend the
externPowerKit, because with that you can add an external
power supply at the mySmartControl.
Characteristics:
- AVR RISC processor-board with ATmega8
- simple communication of the microcontroller with the PC or Notebook via USB which provides a virtual COM-Port
to the PC
- industrial standard-controller (CP2102) USB 2.0 to serial bridge from SiLabs
- power supply via USB connection, 5 V or 3.3 V
- fast "in system"-programming, alternatively over USB and Bootloader or ISP
- quartz for accurate timing
- reset button, power LED
- 20-pin female header as standard myAVR board connector
- fully equipped
- optional equipped with external power supply connector (for more power resp. stand-alone use)
- optional equipped with standard Atmel ISP connector
- special connections prepared (Port D0, D1, B6, B7, C6, C7)
- Printed circuit board pre-drilled, tin-plated, industrial production, solid, printed
|
mySmartControl M8, equipped
The compact microcontroller-board with an AVR RISC controller from Atmel and a standardized USB interface. Maximum compatibility to the myAVR Board with the ATmega8 by 3,6864 MHz.
|
list price: 26.00 Euro
|
|
|
|
