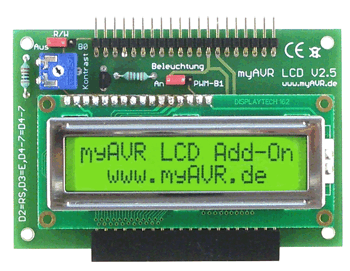

myAVR LCD add-on, for text, 5 V AVR

Product groups > Additional modules and accessories > myAVR LCD add-on, for text, 5 V AVR

more pictures

available downloads for this product:

LC display for text in high quality-
Expansion board for myMCU system boards as well as for own circuits

The myAVR LCD add-on is a LC-Modul that could be connected directly to myMCU system boards as well as for own circuits. It is designed with high quality LC display.

2 lines with 16 characters each
background illumination

can be set with a jumper or
regulated over the microcontroller

contrast controller and connectors for the myAVR Board and other add-ons
jumper to employ the r/w-signal

Technical data
Operating voltage:	ca. 120 mA with backlight ca. 5 mA without backlight
Operating voltage:	typical 4.8 - 5.3 V
Operating temperature:	0 - 30°C
Maximum current:	150 mA

myAVR LCD add-on, for text, 5 V AVR LC-Display for text in high quality 2 lines with 16 characters each background illumination contrast controller	list price: 19.49 Euro
