STM32F3-Discovery

Product groups > hardware > STM32F3-Discovery

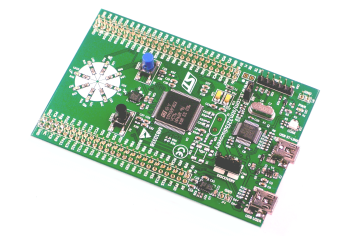

The development board STM32F3 discovery of the STM32 family-
with MEMS gyroscope and e-compass

The STM32 F3 series combines a 32-bit ARM Cortex-M4 core with DSP and FPU instructions. The STM32F3-Discovery provides good support to understand these mix signals and the development of own programs. It enables both beginners and experienced users a quick introduction to the ARM technology.
The STM32F3-Discovery uses the ARM Cortex M4 controller STM32F303VCT6 and includes the embedded ST-Link/V2 for programming and debugging. With the integrated gyroscope can the dislocation of the board be illustrated by different colored LEDs. The e-compass is able to show the direction of north via LED.
The board has 2 mini USB ports.

Properties

STM32F303VCT6 microcontroller in an LQFP100 package with
- 32 Bit ARM Cortex-M0 core
- 256 KByte Flash
- 48 KByte RAM
ST MEMS digital 3-axis gyroscope and digital compass
10 LEDs
- 1 for USB communication
- 1 for 3,3 V power on
- 8 freely available for the user
2 buttons
- 1 for reset
- 1 freely available for the user
programmer onboard

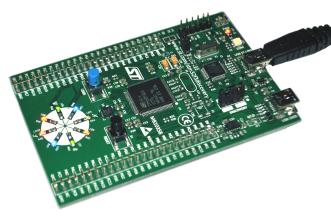

STM32F3-Discovery with mini USB-cable and LED gyroscope

Functions

ST-Link/V2 for programming and debugging is integrated on the board.
with a jumper, the board can also serve as ST-Link/V2 for programming and debugging of external microcontroller (via SWD connection)
board power supply through USB
3 V and 5 V power supply for external applications available
all microcontroller pins are routed via pin headers to the outside

Examples of application

Using the gyroscope as a movement sensor
brings you into line at movement
input device for gaming applications
position control of models
and much more

A large amount of freely available, complete examples, including the original manufacturer's datasheet are available on www.st.com .

system requirements for Discovery-board

PC with Windows 7 / 8 / 10
Mini USB-cable

Recommendation of software

Please Attention that SiSy Microcontroller++ is only in German.
The substantial range of function of this board is optimally supported by SiSy Microcontroller++ for the development of own program. SiSy Microcontroller++ is a software package for designing, writing, dating, burning and checking the self developed program. There are features of an easy development for programming available and its possible to work with UML. The own work will be optimized with a sample program and integrated facilities.
Here you can find continuing information about SiSy Microcontroller++.

STM32F3-Discovery The developer board of the STM-processor family with high-performance F3-processor mini USB interface MEMS gyroskop e-Compass LEDs and button onboard programmer	list price: 39.00 Euro
