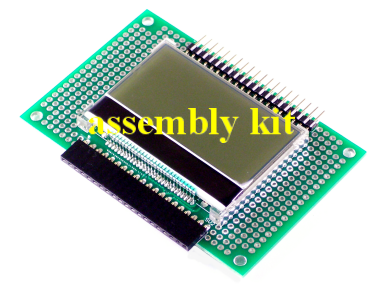

GraphicLCD Add-On 128x64, assembly kit

Product groups > Additional modules and accessories > GraphicLCD Add-On 128x64, assembly kit

more pictures

available downloads for this product:

Only three components to solder - done! All SMD parts are assembled
This graphic LC display has a resolution of 128x64 pixels and a shimmering blue backlight. It is perfect for the visualization of inputs and outputs, such as graphics, text, diagrams, logos, curves, lines, characters and much more. Despite its small dimensions it offers plenty of space for lots of info.
The carrier board has the myMCU standard connections and additional space in the grid dimensions of 2.54 mm for individual use.

Properties

Properties Add-On
Dimension:	90 x 60 x 22 mm
Operating voltage:	3 bis 3.3 V (5 V testet, not guaranteed)
Operating temperature:	0 - 50° C
Properties board
Dimension:	90 x 60 mm
Grid:	grid dimension 2.54 mm
Connection:	female and Multi-pin connector 20 pole, angled
Properties display
Size:	128x64 pixel
Size of pixel:	0.33 mm x 0.33 mm
Visible area:	50 x 25 mm
Overall size:	58,2 x 41,7 x 8,5 mm
Grid dimensionof the connection pins:	1.27 mm
LCD type:	FSTN
Backlight:	LED
Driver type of the backlight:	external power supply
Power supply for the LCD:	-0.3 - 13.5 V
Visual angle:	6 o'clock / 12 o'clock

References:

The screen is prone to damage caused by electrostatic discharge (ESD). Please pay attention on the precautions for ESD.
The display is made of glass. Avoid dropping and throwing the display.
If the display is damaged the liquid crystal may leak.
If you come in contact with the liquid wash the affected skin as soon as possible with soap and water.
Cleaning: If the display is a bit soiled breathe on it and wipe it with a soft dry cloth. If it is really dirty, then moisten the cloth with either with isopropyl alcohol or ethyl alcohol.
The following liquids and solutions should not be used as they may damage the display:
- water
- ketones
- aromatic solutions
You can find further information in the datasheet.

GraphicLCD Add-On 128x64, assembly kit Graphic LCD for visualization of outputs for graphics and text 128 x 64 pixel pixel size: 0.33 x 0.33 mm Display black/white with backlight myMCU standard connection assembly kit	list price: 19.95 Euro
